GGD electric power saving distribution equipment switchgear box

GGD electric power saving distribution equipment switchgear box

    • GGD electric power saving distribution equipment switchgear box
    • GGD electric power saving distribution equipment switchgear box
    • GGD electric power saving distribution equipment switchgear box
    • GGD electric power saving distribution equipment switchgear box
    • GGD electric power saving distribution equipment switchgear box
  • GGD electric power saving distribution equipment switchgear box

    Product Details:

    Place of Origin: Zhejiang of China
    Brand Name: Ptox Corp
    Model Number: GGD

    Payment & Shipping Terms:

    Price: 8065Set
    Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
    Supply Ability: 30 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Min.Order: 1 Port: Shanghai, Guangzhou, Shenzhen, Chongqin,Ningbo
    FOB: 8 Product Name: Switchgear Box
    Material: CRCA Rated Voltage: 380kV
    Rated Current: 660A Rated Frequency: 50Hz
    Application: Industrial Type: Switchgear Box
    Protection Degree: IP40 Standard: GB7251.12

    GGD electric power saving distribution equipment switchgear box

    Features

    • Good installation flexibility
    • Strong assembling generality
    • High seriation and applicability
    • Excellent reliability

    Description

    It is a new-type low voltage power distribution which is designed to meet the requirement of energy sources ministry ,power consumers and design department on safe, economical, reasonable and reliable basis.

    Application

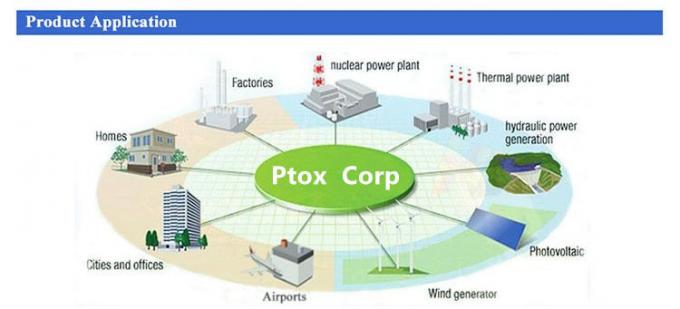

    It is applicable to power consumers of power plants, substations, industrial and mining enterprises and is used for electric energy conversion, distribution and control of power, lighting and power distribution equipment in power distribution system with AC 50Hz, rated operating voltage of 380V and rated operating current of up to 2,500A.

    Normal operating conditions

    • Ambient air temperature : -5°C ~ +40°C;
    • Daily average temperature(Within 24h): +35
    • Relative humidity: 50% at the maximum temperature of +40 and may be higher at lower temperature, for example, 90% at +20.
    • Altitude:2,000m;
    • Installation inclination: 5°;
    • Installation places: Indoor; without fire, explosion risk, serious pollution, rain immersion, violent vibration,chemical corrosion and conductive dust.

    Special operation conditions
    If the switchgear will be used in conditions that exceed the normal environmental conditions, users should consult with the manufacturer.

    Technical Parameter

    No.

    Item(Unit)

    Data

    1

    Rated Operational Voltage(V)

    AC380

    2

    Rated Insulation Voltage(V)

    AC660

    3

    Rated Frequency(Hz)

    50

    4

    Mai Bus Rated Current(A)

    2500

    5

    Main Bus Rated Short-time Withstand Current(kA)

    50

    6

    Rated Impulse Withstand Voltage(kV)

    8

    7

    Standard

    GB7251.12

    8

    Protection Degree

    IP40

    GGD electric power saving distribution equipment switchgear box

    GGD electric power saving distribution equipment switchgear box

    GGD electric power saving distribution equipment switchgear box

    GGD electric power saving distribution equipment switchgear boxGGD electric power saving distribution equipment switchgear box
