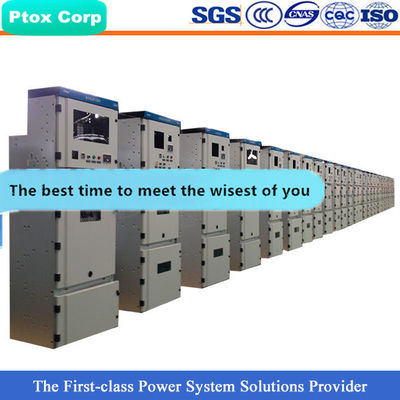

China supplier inside medium voltage 12kv switchgear cabinet

China supplier inside medium voltage 12kv switchgear cabinet

    • China supplier inside medium voltage 12kv switchgear cabinet
    • China supplier inside medium voltage 12kv switchgear cabinet
    • China supplier inside medium voltage 12kv switchgear cabinet
    • China supplier inside medium voltage 12kv switchgear cabinet
  • China supplier inside medium voltage 12kv switchgear cabinet

    Product Details:

    Place of Origin: Zhejiang
    Brand Name: Ptox Corp
    Model Number: KYN28A-12

    Payment & Shipping Terms:

    Price: 12904Set
    Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
    Supply Ability: 30 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Min.Order: 1 Port: Shanghai, Guangzhou, Shenzhen, Chongqin,Ningbo
    FOB: 12 Product Item: 12kv Switchgear Cabinet
    Material: CRCA Rated Voltage: 3.6-12kV
    Rated Frequency: 50Hz Rated Transfer Current: Up To 4000A
    Protection Degree: IP4X-IP2X Type: 12kv Switchgear Cabinet

    China supplier inside medium voltage 12kv switchgear cabinet


    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet

    Features

    • High protection degree
    • Simple breaker replacement
    • Good handcart interchangeability
    • Less covered area
    • High security
    Product Description

    It is a new type indoor product self-developed by introducing the technology of ABB and absorbing similar products advantages at home and abroad. The device is middle-set-type -structure, having much higher technique index.

    Application

    It is applicable for 3.6kV ~ 12kV with three-phase AC 50Hz single bus or single bus sectional system. It is mainly used for substation and distribution system of power plants, substation, industrial and mining enterprises, building hotels, municipal construction and petrochemical sector as power receiving, power distribution and the circuit controlling, protection and monitoring.

    Normal Conditions

    • Ambient air temperature : -5°C ~ +40°C;
    • Daily average temperature(Within 24h): ≤+35℃
    • Altitude:≤1000m;
    • Relative humidity: within 24h, daily average value ≤ 95% , daily average vapor pressure≤ 2.2KPa; monthly average value ≤ 90%, monthly average vapor pressure≤ 1.8KPa
    • Ambient air is not significantly polluted by dust, smoke, corrosive and / or flammable gas, vapor or salt contamination.

    Special Conditions

    If the switchgear will be used in conditions that exceed the normal environmental conditions, users should consult with the manufacturer.

    Product Parameter

    Item(Unit)

    Data

    Rated Voltage(kV)

    3.6~12

    Rated Current(A)

    ≤4000

    Rated Frequency(Hz)

    50

    Rated Short-time Power Frequency Withstand Voltage(kV)

    42

    Rated Lightning Impulse Withstand Voltage (kV)

    75

    Rated Peak Withstand Current(kA)

    ≤100

    4S Rated Short-time Withstand Current(kA)

    ≤40

    Standard

    GB3906

    Protect Degree

    Out Shell IP4X, Cubicle and Door Open IP2X

    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet China supplier inside medium voltage 12kv switchgear cabinet China supplier inside medium voltage 12kv switchgear cabinet China supplier inside medium voltage 12kv switchgear cabinet

    China supplier inside medium voltage 12kv switchgear cabinet
